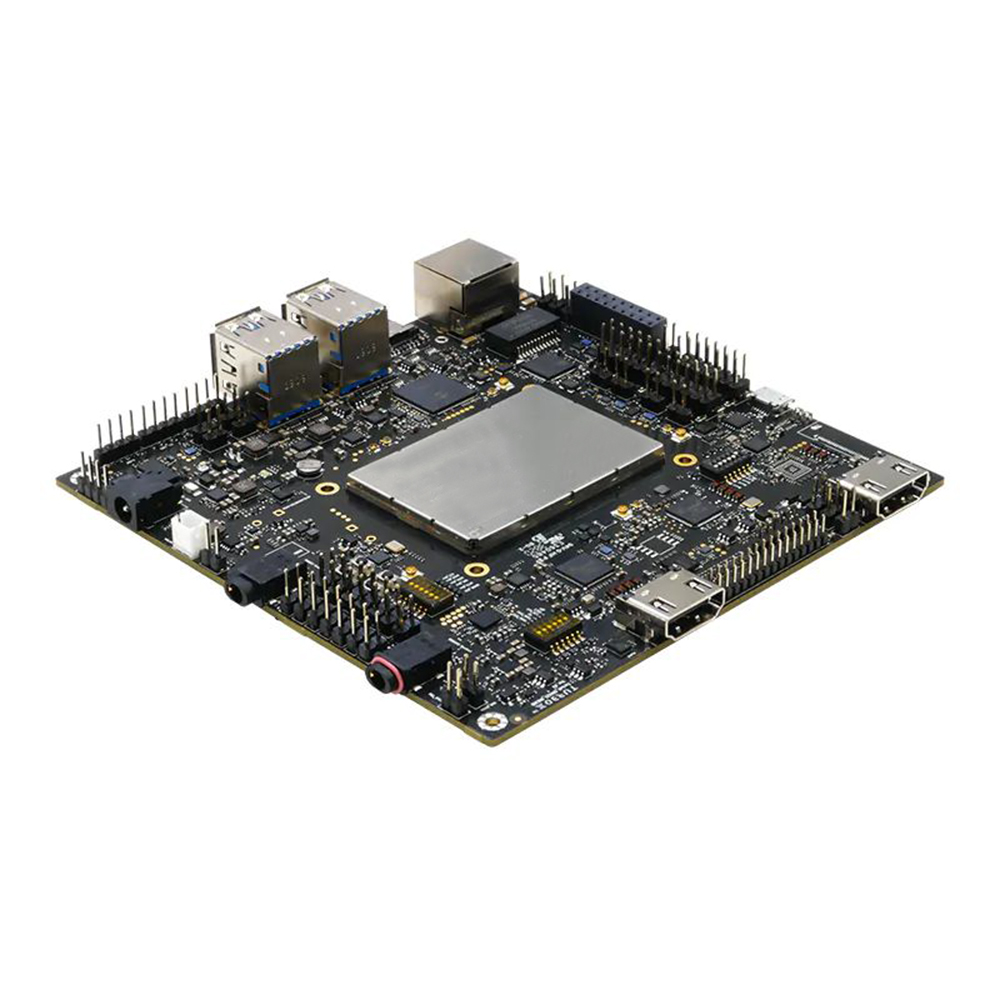

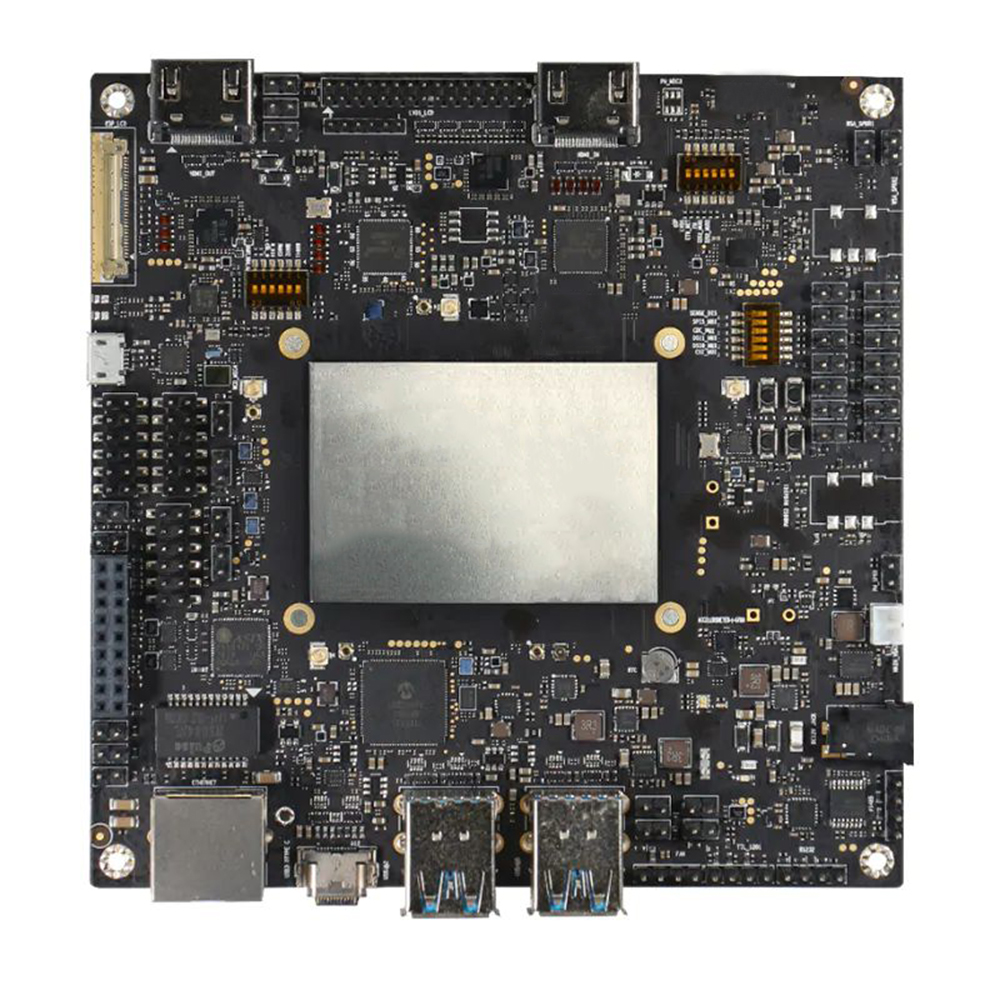

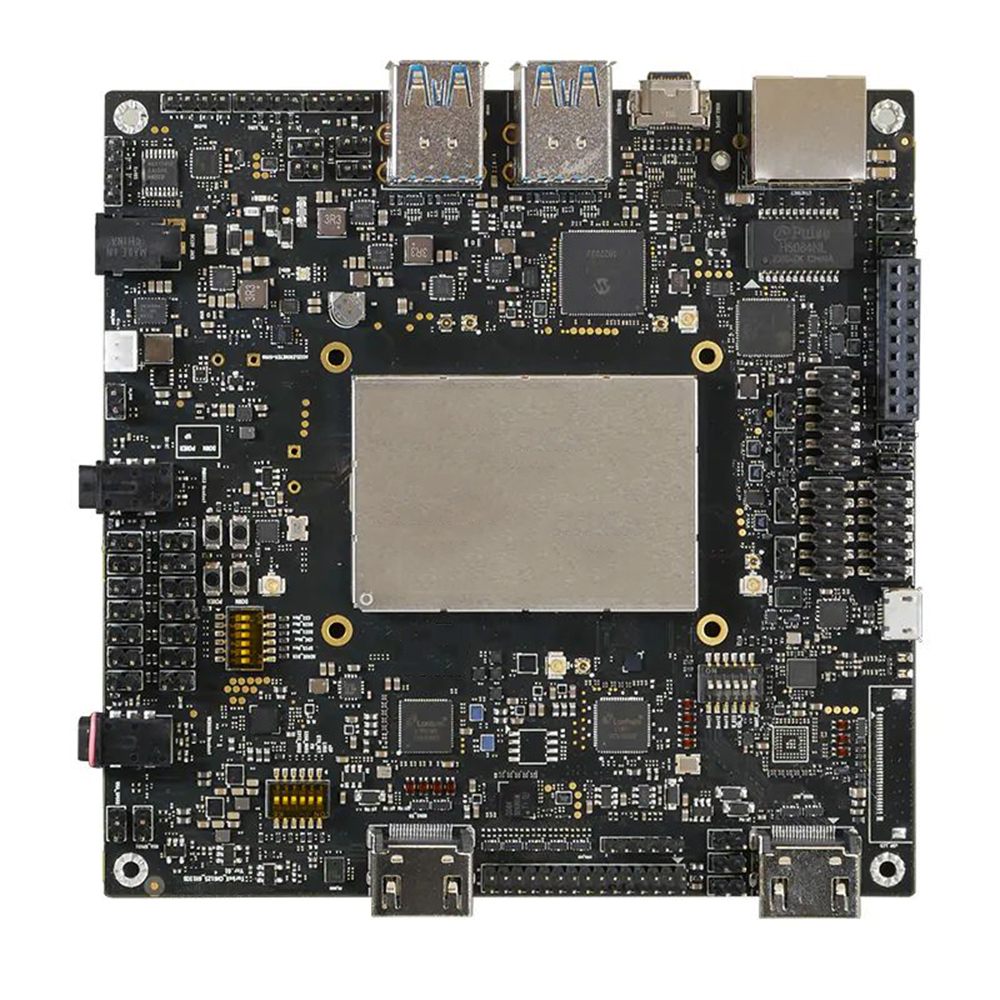

YX6125开发套件(Development Kit)
YX6125 开发套件基于 pin2pin 兼容的 SOM 而设计,可支持视频会议终端、行车记录仪、机器人、手持设备等智能硬件产品的开发,并具有丰富的硬件接口和软件开发包(SDK),可帮助客户快速验证平台功能并构建产品原型。
The Development Kit is designed based on the pin2pin compatible SOMs: YX6125. It can support the development of Video Conference, Dash Cam, Robotics, Handheld devices,etc. Its rich hardware interfaces and software SDK can help customers validate the function and build the prototype quickly.
The Development Kit is designed based on the pin2pin compatible SOMs: YX6125. It can support the development of Video Conference, Dash Cam, Robotics, Handheld devices,etc. Its rich hardware interfaces and software SDK can help customers validate the function and build the prototype quickly.
产品优势:
规格参数 Specifications | |||
分类 | 描述 | ||
SOM平台 | YX6125 SOM | ||
(这些SOMs是pin2pin兼容的,并共享相同的载波板) | |||
相机接口 | 双14位ISP,3 x MIPI-CSI 4lane连接器 | ||
1 x OV08A10 摄像头 | |||
1 x OV13B10 摄像头 | |||
1 x HDMI 输入 | |||
显示接口 | 1 x 显示接口 1.4或1 x HDMI 输出(需要返工);1 x LVDS: 1 x 5.0”TFT-LCD; | ||
音频接口 | 2 x 3.5mm耳机 | ||
4 x 数字麦克风(来自外部编解码器) | |||
2 x 数字麦克风(来自CPU) | |||
2 x 扬声器输出(来自外部编解码器) | |||
其他接口 | 1 x USB 3.0 Type C;4 x USB 3.0 Type A;1 * Micro USB(用于调试) | ||
2 × SIM卡;1 x PWM;1 × SD卡;1 * RJ45 | |||
1倍RTC;1倍超级市值;1 ×电池连接器 | |||
1 x RS232/RS485/TTL; 1 x NFC | |||
1 x ALS/接近传感器;1 x加速度计+陀螺传感器; | |||
1 x磁传感器;1 x压力传感器; | |||
2 x LTE天线;1个Wifi/BT天线;1 x GNSS天线 | |||
运行环境 | 工作温度:—20℃~ 70℃ | ||
工作湿度:5%~95%,不凝结 | |||
尺寸 | 120 x 120 mm | ||
操作系统 | Android 10 | ||
Category | Description | ||
Platform | YX6125 SOM | ||
(These SOMs are pin2pin compatible and share the same carrier board) | |||
Camera Interfaces | (Dual 14-bit ISP,3 x MIPI-CSI 4lane Connectors) | ||
1 x OV08A10 Camera | |||
1 x OV13B10 Camera | |||
1 x HDMI In | |||
Display Interfaces | 1 x DisplayPort 1.4 or 1 x HDMI Out(need rework); 1 x LVDS: 1 x 5.0“ TFT-LCD; | ||
Audio Interfaces | 2 x 3.5mm headset | ||
4 x Digital Mics (From External Codec) | |||
2 x Digital Mics (From CPU) | |||
2 x Speaker out (From External Codec) | |||
Other Interfaces | 1 x USB 3.0 Type C; 4 x USB 3.0 Type A; 1 x Micro USB(For Debug) | ||
2 x SIM Card; 1 x PWM; 1 x SD card; 1 x RJ45 | |||
1 x RTC;1 x Super Cap; 1 x Battery Connector | |||
1 x RS232/RS485/TTL; 1 x NFC | |||
1 x ALS/PROXIMITY SENSOR; 1 x ACCELEROMETER+GYRO Sensor; | |||
1 x Magnetic Sensor; 1 x Pressure Sensor; | |||
2 x LTE Antennas; 1 x Wifi/BT Antenna; 1 x GNSS Antenna | |||
Operating Environment | Operation Temperature: --20℃ ~ 70℃ | ||
Operation Humidity: 5%~95%, non-condensing | |||
Dimension | 120 x 120 mm | ||
OS Support | Android 10 |
